NBMB-FF extra heavy duty premium brakes are an excellent choice and without question the best performing HD premium-grade brake blocks on the market today.
NBMB-FF Extra Heavy Duty Premium Brakes
Description
NBMB-FF extra heavy duty premium brakes feature a medium-friction asbsetos-free brake formula and a glass and acrylic base.
These brake blocks pass the interia dynamometer requirement of FMVSS 121 brake standard at a 23,000 lb. GAWR using an AL factor of 165 (type 30 air chamber and a 6” slack adjuster) or greater.
NBMB-FF has superior durability and friction stability, characteristics available only in premium grade materials. It’s usable on both Wedge and S-Cam brakes for a wide range of applications, and it provides exceptional performance.
NBMB-FF extra heavy duty premium brakes and without question the best performing HD premium-grade brake linings on the market today.
Application
Recommended for use on S-Cam and Wedge brakes on trucks,tractors and trailers in medium weight applications such as general cargo, furniture, plastics and mail.
Gogan Hardness
20-25 GC
Nondestructive method of measuring a lining’s compressibility. Used as a quality control check of the consistency of formulation and processing of brake lining (SAE J379a).
Specific Gravity
2.00-2.10
Nondestructive test used as a quality control check of the consistency of formulation and processing of brake lining (SAE J380).
Tensile Strength
1550 PSI
Method of evaluating physical strength of brake lining (ASTM D952). Force required to break a sample 1.0 x 1.0 inch.
Temp Range
700 °F
Procedure

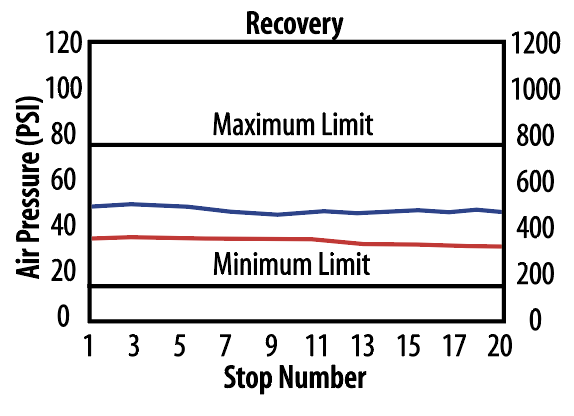

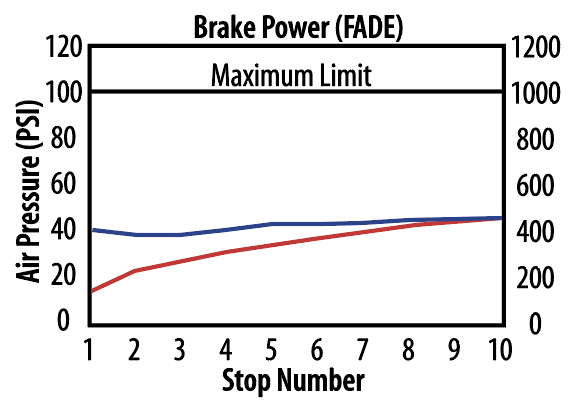

Typical Inertia Dynamometer Plot Test Parameters – FMVSS 121 Brake Standard
- Brake – 16.5″ x 7″ Meritor S-Cam
- AL Factor – 165
- Axle Load – 23,000 lbs.
- Rolling Radius – 21.8″
- Drum Weight – 120 lbs.

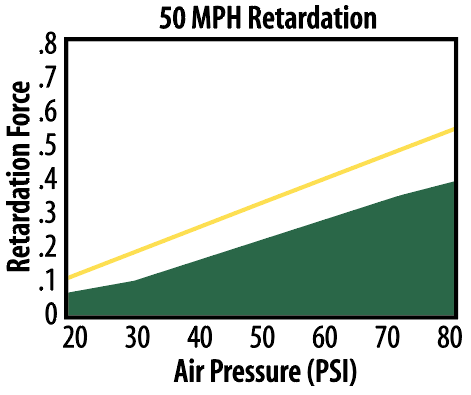

Retardation Force
Minimum Required Retardation
Temperature (F)
Pressure
