NB200-FF brake blocks are without question the top performing HD brake lining on the market today.
NB200-FF HD Truck Brake Linings
Description
NB200-FF HD truck brake linings are over-achievers, fitting a wide range of fleet demands and outperforming other asbestos-free products in their class. Provide excellent stopping abilities, not over aggressive on drums and offers superior lining life based on cost per mile. These blocks are an all-around performer.
NB200-FF blocks pass the inertia dynamometer requirement of the FMVSS 121 brake standard at a 23,000 lb. GAWR when using an AL factor of 165 (type 30 air chamber and a 5.5″ slack adjuster) or greater.
NB200-FF HD truck brake linings are without question the best performing heavy duty grade brake block on the market today.
Application
Recommended for use on S-Cam and Wedge brakes on trucks, tractors and trailers in medium weight applications such as general cargo, furniture, plastics and mail.
Gogan Hardness
25 GC
Nondestructive method of measuring a lining’s compressibility. Used as a quality control check of the consistency of formulation and processing of brake lining (SAE J379a).
Specific Gravity
2.05
Nondestructive test used as a quality control check of the consistency of formulation and processing of brake lining (SAE J380).
Tensile Strength
1450
Method of evaluating physical strength of brake lining (ASTM D952). Force required to break a sample 1.0 x 1.0 inch.
Temp Range
700 °F
Procedure

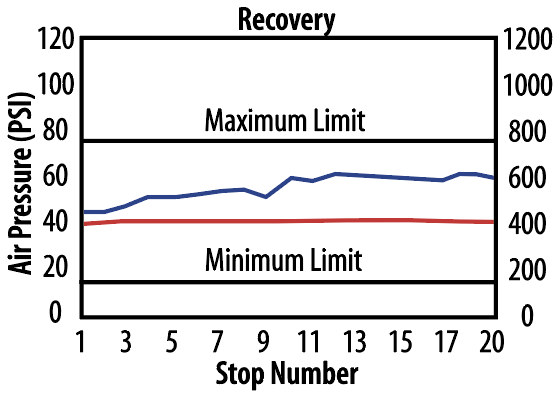

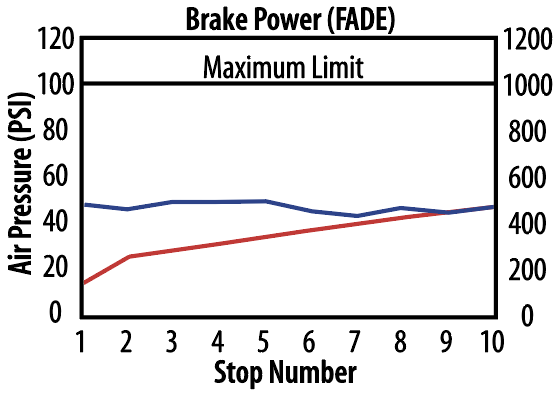

Typical Inertia Dynamometer Plot Test Parameters – FMVSS 121 Brake Standard
- Brake – 16.5″ x 7″ Meritor S-Cam
- AL Factor – 165
- Axle Load – 23,000 lbs.
- Rolling Radius – 20.7″
- Drum Weight – 120 lbs.

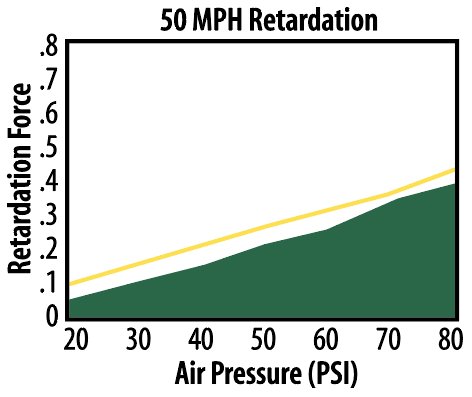

Retardation Force
Minimum Required Retardation
Temperature (F)
Pressure
This NeoBrake lining complies with the 2025 Zero Copper requirement.
