NBP23-FF is an unapologetic premium standard 23K brake lining featuring NeoKinetic Friction Technology™ that delivers superior performance, wear life, and drum compatibility compared to others in its economy class.
NBP23 Premium Standard 23K
Description
NBP23-FF is a proud premium standard 23K brake lining, featuring exclusive NeoKinetic Friction Technology. NBP23 is a medium-friction, asbestos-free block built to perform when the runs are long but the cash is not – ideal for general freight applications and intermodal operations.
NBP23-FF meets the inertia dynamometer requirement of the FMVSS 121 brake standard at a 23,000 lb. GAWR when using an AL factor of 165 (type 30 air chamber and a 5.5″ slack adjuster) or greater.
Without question, this premium standard 23K lining leads the way in economy class.
Application
Recommended for use on S-Cam and Wedge brakes on trucks, tractors and trailers in medium weight applications such as general cargo, furniture, plastics and mail.
Gogan Hardness
25 GC
Nondestructive method of measuring a lining’s compressibility. Used as a quality control check of the consistency of formulation and processing of brake lining (SAE J379a).
Specific Gravity
2.05
Nondestructive test used as a quality control check of the consistency of formulation and processing of brake lining (SAE J380).
Tensile Strength
1450
Method of evaluating physical strength of brake lining (ASTM D952). Force required to break a sample 1.0 x 1.0 inch.
Temp Range
700 °F
Procedure

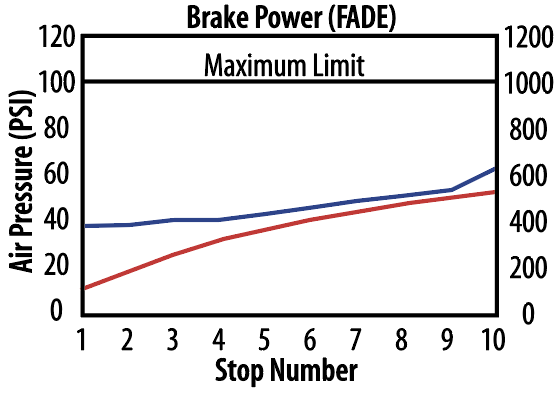

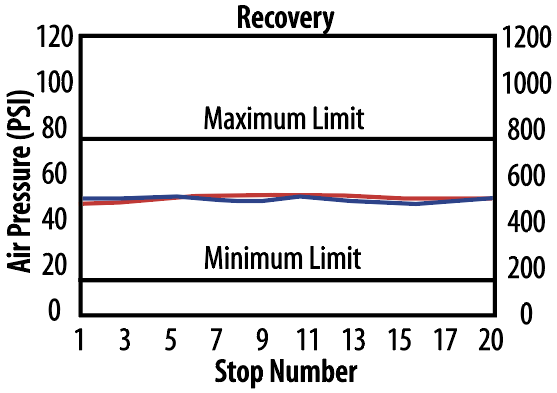

Typical Inertia Dynamometer Plot Test Parameters – FMVSS 121 Brake Standard
- Brake – 16.5″ x 7″ Meritor S-Cam
- AL Factor – 165
- Axle Load – 23,000 lbs.
- Rolling Radius – 20.7″
- Drum Weight – 120 lbs.

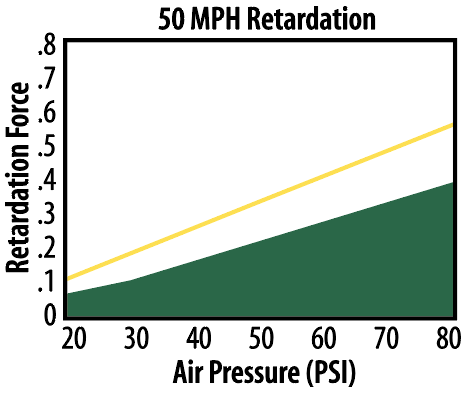

Retardation Force
Minimum Required Retardation
Temperature (F)
Pressure
