If cost per mile and less downtime are important to you, NBUB-GG high-performance premium brake linings are the rebuilt shoe you need.
NBUB-GG Premium Truck Brake Linings
Description
NBUB-GG premium truck brake linings feature a high-friction asbestos-free formula with a glass fiber base. This premium mix is exceptionally fade resistant, has a very long life and exceptional drum compatibility. NBUB-GG’s stopping performance and wear characteristics have been extensively evaluated in dynamometer testing and in millions of miles of practical use by fleets. Low swell and growth characteristics reduce potential for wheel lockup, making NBUB-GG suitable for use with automatic slack adjusters. High tensile strength eliminates cracking in both shoe riveting and application on the truck.
NBUB-GG meets the inertia dynamometer requirement of the FMVSS 121 brake standard at a 26,000 lb. GAWR when using an AL factor of 180 type (30 air chamber and a 6″ slack adjuster). If cost per mile and downtime are important to you, NBUB-GG premium brake linings are the rebuilt shoe you need.
Application
Recommended for use on trucks, tractors and trailers in all applications including general cargo, stop and go urban driving, bus, grain, liquid hauling, dump trucks and lowboys. Also designed for hydraulic cam brakes and air operated steel axles.
Gogan Hardness
25-35 GC
Nondestructive method of measuring a lining’s compressibility. Used as a quality control check of the consistency of formulation and processing of brake lining (SAE J379a).
Specific Gravity
1.94-2.02
Nondestructive test used as a quality control check of the consistency of formulation and processing of brake lining (SAE J380).
Tensile Strength
1700 PSI
Method of evaluating physical strength of brake lining (ASTM D952). Force required to break a sample 1.0 x 1.0 inch.
Temp Range
1000 °F
Procedure

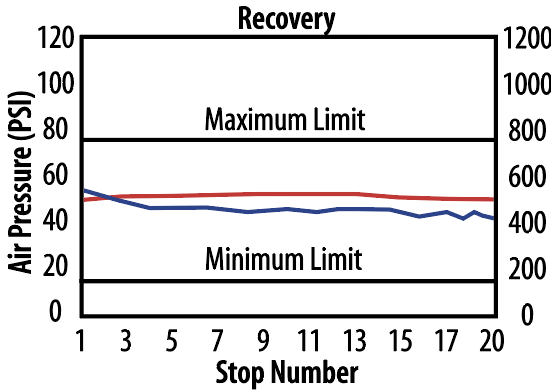

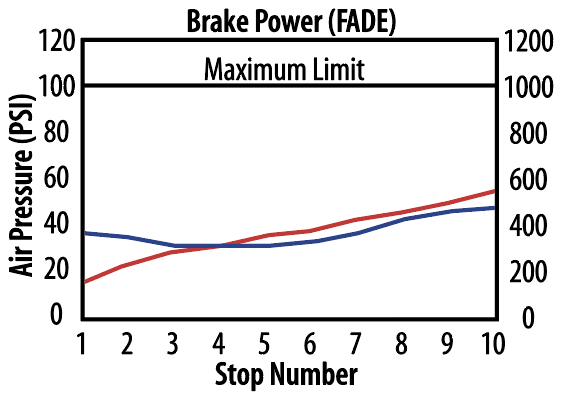

Typical Inertia Dynamometer Plot Test Parameters – FMVSS 121 Brake Standard
- Brake – 16.5″ x 7″ Meritor S-Cam
- AL Factor – 180
- Axle Load – 25,000 lbs.
- Rolling Radius – 20.7″
- Drum Weight – 120 lbs.

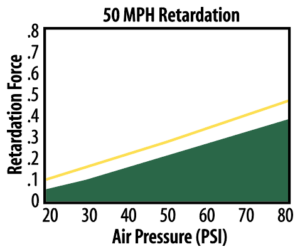

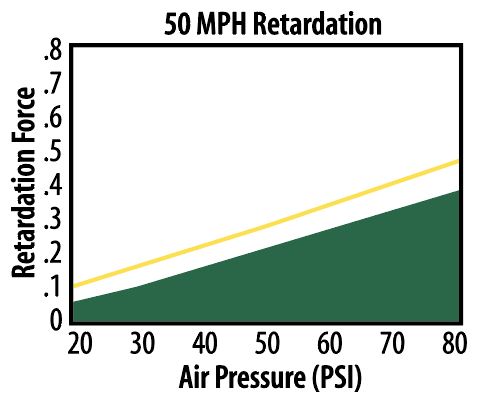

Retardation Force
Minimum Required Retardation
Temperature (F)
Pressure
Downloads
NBUB Spec Sheet
Brake Interchange Comparison Chart
Core ID Chart
