NB225-FF extra HD brake linings are a heavyweight workhorse for long-haul demands. This aramid fiber, resin-based formula has a proven track record for delivering safe stopping, extended life, and prolonged drum wear in all applications.
NB225-FF Extra HD Brake Linings
Description
NB225-FF extra HD brake linings are a heavyweight workhorse for long-haul demands. Assure quiet, dependable stopping power and outstanding block life. Especially formulated with highly enriched aramid fibers, along with the finest materials available. Protect cargo and driver. Help lower operating costs. Perfect for buses, trucks and trailers, where reserve braking capabilities and fast stops are essential.
NB225-FF passes the inertia dynamometer requirement of the FMVSS 121 brake standard at a 23,000 lb. GAWR when using an AL factor of 165 (type 30 air chamber and a 5.5″ slack adjuster) or greater.
NB225-FF extra HD brake linings are the answer to all the new “hyped”technology blocks. This aramid fiber, resin based formula has a proven track record for delivering safe stopping, extended life, and prolonged drum wear in all applications.
Application
Recommended for use on trucks, tractors, and trailers in all applications including general cargo, stop and go urban driving, bus, grain, liquid hauling, dump trucks and lowboys. Also designed for hydraulic cam brakes and air operated steel axles.
Gogan Hardness
27.5 GC
Nondestructive method of measuring a lining’s compressibility. Used as a quality control check of the consistency of formulation and processing of brake lining (SAE J379a).
Specific Gravity
2.05
Nondestructive test used as a quality control check of the consistency of formulation and processing of brake lining (SAE J380).
Tensile Strength
1650
Method of evaluating physical strength of brake lining (ASTM D952). Force required to break a sample 1.0 x 1.0 inch.
Temp Range
900 °F
Procedure

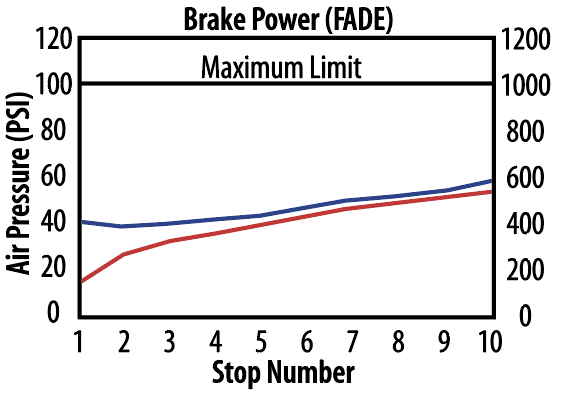

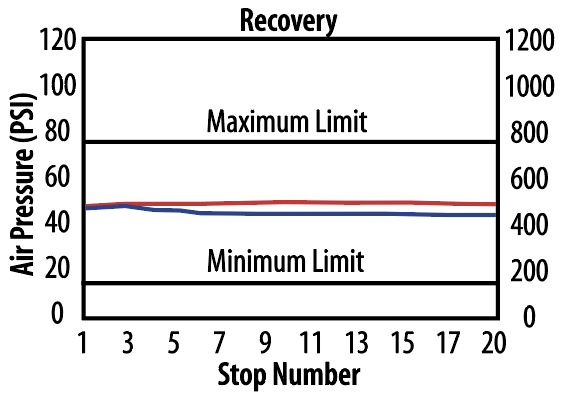

Typical Inertia Dynamometer Plot Test Parameters – FMVSS 121 Brake Standard
- Brake – 16.5″ x 7″ Meritor S-Cam
- AL Factor – 165
- Axle Load – 23,000 lbs.
- Rolling Radius – 20.7″
- Drum Weight – 120 lbs.

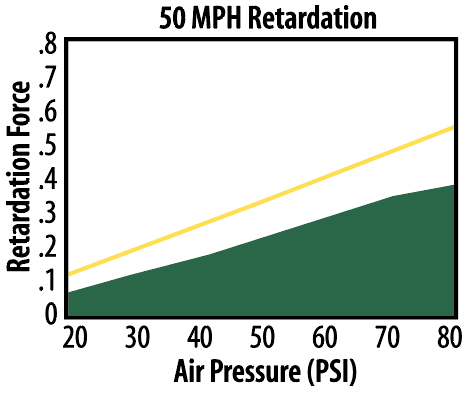

Retardation Force
Minimum Required Retardation
Temperature (F)
Pressure
This NeoBrake lining complies with the 2025 Zero Copper requirement.
